S-560

20-Watt Attenuator, Wall Mount, Stainless Steel, S-560

Clarity S-560 Attenuator

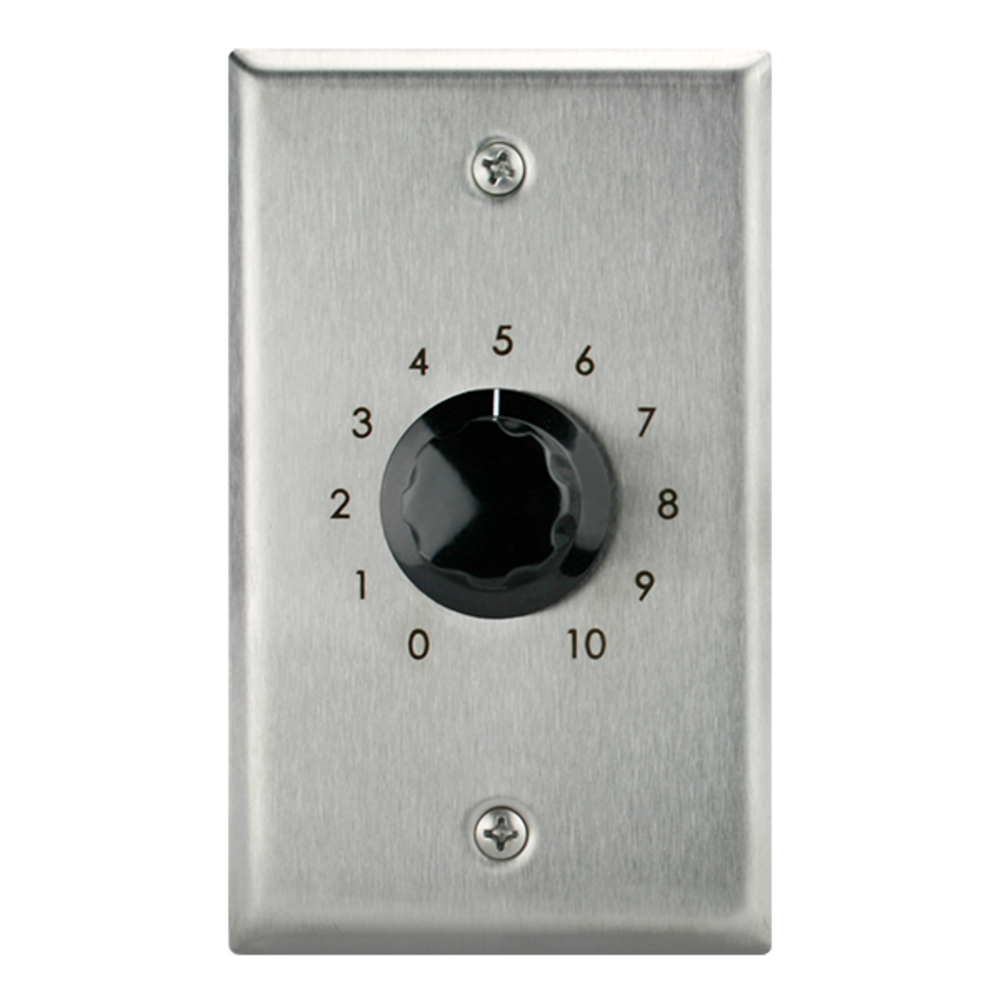

The S-560 permits changes to the audio level of speakers and horns without altering the speaker wiring connections. Tap the speaker for the maximum audio level required and use the attenuator to change the volume level. The attenuator features a stainless-steel plate with numbered scale and fits a single-gang electrical wall box. The attenuator controls a 20-Watt speaker load with a 10-position tap switch and operates on 25 or 70 Volt speaker lines or 45 Ohm talkback speaker applications.

  • Auto transformer type
  • Brushed stainless steel plate
  • 10 position switch plus 0 “off”
  • Wall mountable
  • Combination 25/70 V operation
  • 20-Watt power rating at 25/70 V
  • Ideal for 45 Ohm talkback circuits

Specifications

Dimensions & Weight

Dimensions:
4.50in H x 2.75in W x 2.13in D
(11.43cm x 6.99cm x 5.41cm)
Weight:
1.00lbs (0.45kg)
Shipping Weight:
3.00lbs (1.36kg)

Mounting

The S-560 can be in-wall or surface mounted using a single-gang electrical box.
