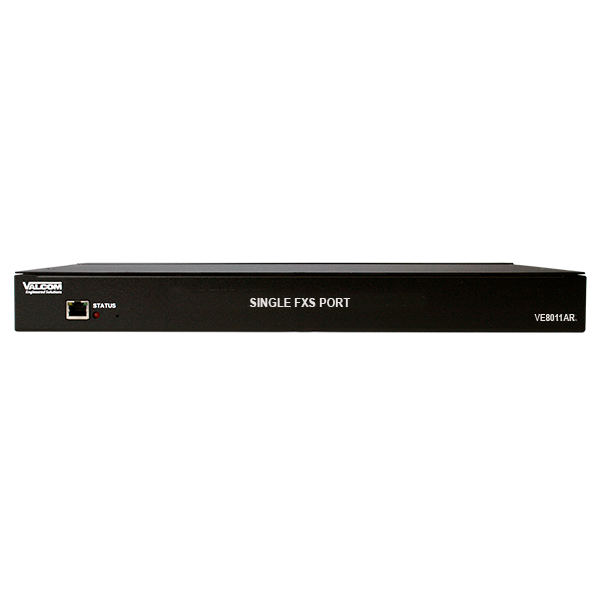

Enhanced Network Station Port, Single FXS Port, VE8011A
The VE8011A Enhanced Network Station Port enables one (1) telephone to engage in paging and phone to phone communications over an IP-based LAN/WAN.
• RJ-45 for network connection
• 1 RJ-11 telephone connections
• 2 relays with Form C contacts
• Front panel activity LED
• Network activity LEDs
• 2 REN
• 2.5mm jack for DC
• Power over Ethernet (PoE) 802.3af compliant
• 1 FXS port
• Provides caller ID information
• No server required
• 1 to 11 digit dial plans
• Easy windows based setup
• Contact closures available for:
-audio indication
-ringing indication
-door unlocking
Specifications
Dimensions & Weight
1.38in H x 6.13in W 5.25in D(3.50cm x 15.60cm x 13.33cm)
Weight:
1.75lbs (0.80kg)
Shipping Weight:
4.00lbs (1.80kg)
