ezIP 24 Port One-Way Gateway, EZ-GW24
*Compatible with Valcom VIP devices when upgraded*
The EZ-GW24 One-Way Gateway is for applications using analog 25 Volt, 45 Ohm or Self-Amplified speakers. The EZ-GW24 is ideal for modernizing existing analog paging systems. The EZ-GW24 One-Way Gateway supports 24 paging zones.
- 24 Zone/Speaker Connections
- The zone output can be programmed for 25 Volt speakers, 45 Ohm speakers or Line Level
- RJ-45 for network connection
- Front panel activity LED
- Compatible with Valcom ezIP Protocol
- Upgradable to Valcom VIP Protocol
ezIP 3 Zone Hybrid Page Controller, EZ-PC3
*Compatible with Valcom VIP devices when upgraded*
The ezIP 3 Zone Hybrid Page Controller is the ideal page controller for integrating legacy systems while being future proof to function with a Voice over IP phone system. This unit is designed for quick and easy installation.
The page controller provides:
- Provides paging from various phone system connections (FXS, PABX station extension or loop start trunk port, Standard telephone, and SIP (Session Initiation Protocol).
- Wideband HD voice for higher intelligible speech
- Simultaneously multicast to IP endpoints and provide line-level output to analog endpoints
- Support for Valcom 45 OHM, 25 Volt, or Valcom Self-Amplified Speakers
- Background Music Input
- Override Audio & Controls
- Flexible Mounting Options (Rack-Mount or Wall-Mount)
- Access to one dry contact closure input (expandable up to 6 with license upgrade)
- Expandable Zone Capabilities via the network(multiple units maybe joined together for 12 or 18 zones)
- Secure SIP
- Scheduler for tone output on a timed basis
ezIP 6 Zone Hybrid Page Controller, EZ-PC6
*Compatible with Valcom VIP devices when upgraded*
The ezIP 6 Zone Hybrid Page Controller is the ideal page controller for integrating legacy systems while being future proof to function with a Voice over IP phone system. This unit is designed for quick and easy installation.
The page controller provides:
- Provides paging from various phone system connections (FXS, PABX station extension or loop start trunk port, Standard telephone, and SIP (Session Initiation Protocol).
- Wideband HD voice for higher intelligible speech
- Simultaneously multicast to IP endpoints and provide line-level output to analog endpoints
- Support for Valcom 45 OHM, 25 Volt, or Valcom Self-Amplified Speakers
- Background Music Input
- Override Audio & Controls
- Flexible Mounting Options (Rack-Mount or Wall-Mount)
- Access to one dry contact closure input (expandable up to 6 with license upgrade)
- Expandable Zone Capabilities via the network(multiple units maybe joined together for 12 or 18 zones)
- Secure SIP
- Scheduler for tone output on a timed basis
ezIP Gateway Audio Port, Network — Single Port, Rack Mount, EZ-GW1R
*Compatible with Valcom VIP devices when upgraded*
The EZ-GW1R is one of Valcom's ezIP Audio Port Gateways that enables voice access to a single zone of one-way paging over an IP-based network. This allows page zone extension anywhere on the network allowing the page zone to be extended anywhere network connectivity is available. It can also be programmed as a SIP device for connectivity to virtually any VoIP telephone system.
- Audio outputs
- Programmable Form C Relay Closures
- Programmable contact closure input
- RJ-45 jack for network connection
- Front panel activity LED
- Compatible with 25 or 70 Volt amplifiers
- Provides audio for up to 40 Valcom one-way self-amplified speaker assemblies
- Output control contact closure provided during paging output
- Barrel jack for optional DC power
ezIP Gateway Audio Port, Network — Single Port, Wall Mount, EZ-GW1W
*Compatible with Valcom VIP devices when upgraded*
The EZ-GW1W is one of Valcom's Audio Port Gateways that enables voice access to a single zone of one-way paging over an IP-based network. This allows page zone extension anywhere on the network allowing the page zone to be extended anywhere network connectivity is available. It can also be programmed as a SIP device for connectivity to virtually any VoIP telephone system.
- Audio outputs
- Programmable Form C Relay Closures
- Programmable contact closure input
- RJ-45 jack for network connection
- Front panel activity LED
- Compatible with 25 or 70 Volt amplifiers
- Provides audio for up to 40 Valcom one-way self-amplified speaker assemblies
- Output control contact closure provided during paging output
- Barrel jack for optional DC power
1 Zone, One-Way, Page Control with Power, V-2000A
Analog Page Control with Built-in Power
The Valcom V-2000A is an integrated single zone page control unit and provides telephone access to a single zone. The V-2000A is equipped with a background music port and is voice-activated music mute when it is initiated. The V-2000A drives audio up to 150 Valcom one-way self-amplified speakers and has the ability to mute background music when a voice-activated page is performed.
- Background music input with voice operated mute
- Built-in power
- Wall or shelf mounted
- UL Listed
- Drives up to 150 Valcom one-way self-amplified speakers

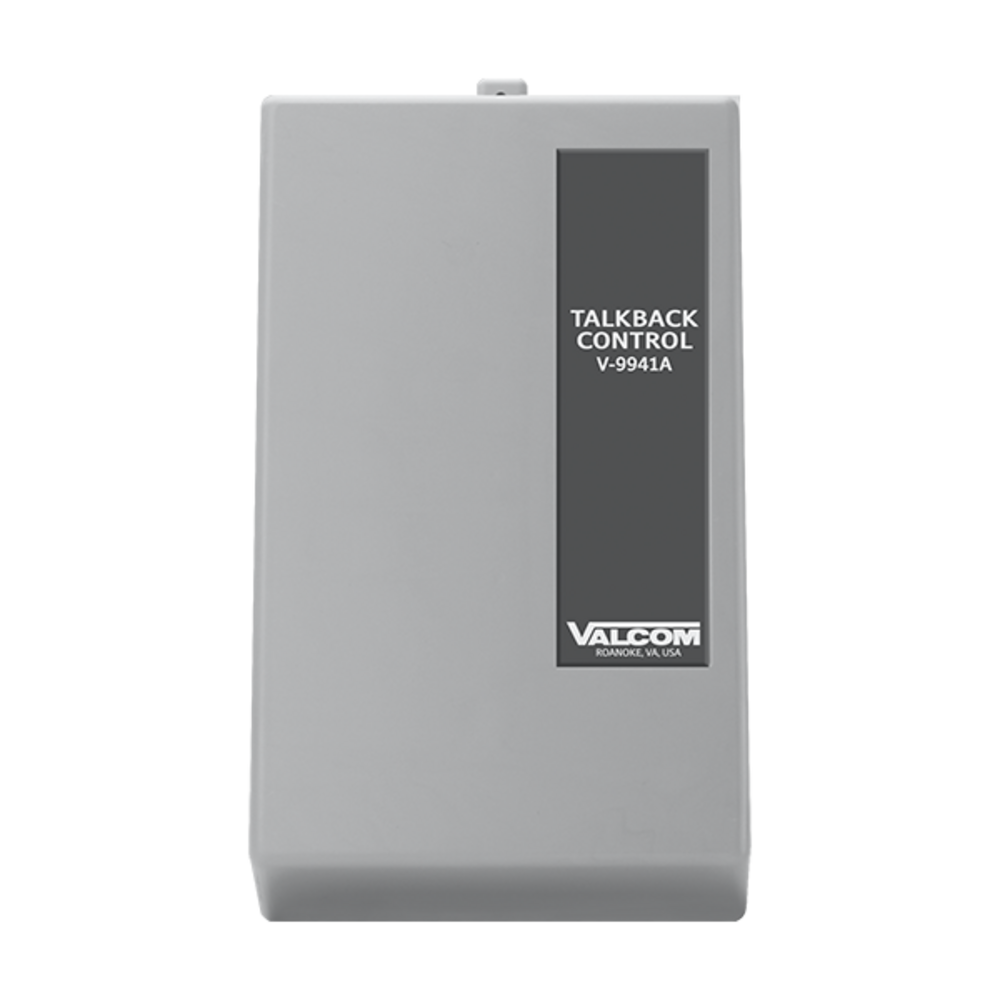

1 Zone, Talkback, Page Control, V-9941A
Valcom's V-9941A, 1 Zone Talkback Page Control is a one zone hands free page unit for use on an electronic key system line key position, a PABX loop start trunk port, a dedicated single line telephone or a two-way page port with a contact closure. With the V-9941A you are able to control the volume for one-way and talkback speakers.
- Background music input
- Optional alert tone and repeated alert tone
- Transmit and receive volume controls
- Screw terminal connections
Universal Paging Interface, V-9972
SIP or Analog based Paging Interface
The V-9972 Universal Paging Interface provides access to virtually any paging system from a variety of phone system connections. Designed for quick and easy installation.
- Use with Valcom multi-zone page units
- Use with Valcom talkback page units
- Background music mutes during page
- Customizable pre-page alert tone
- Music and tones volume controls
- Requires a power supply; VP-624D
not included, but recommended - Feedback elimination
- Multiple disconnect options
- Security code option
- SIP compatible, TLS/SRTP supported for SIP
- Web interface
L9972-1 license can be added for multiple SIP lines and enhanced Night Ring.
L9972-2 license can be added to enable full functionality with other Valcom IP Endpoints, and includes the capabilities of the -1 license.
Learn More
Universal Paging Interface with Licenses, V-9972-2
SIP or Analog based Paging Interface
The V-9972-2 Universal Paging Interface with Licenses provides access to virtually any paging system from a variety of phone system connections. Designed for quick and easy installation. With the extended License version, you get additional features, such as multiple SIP lines and enhanced Night Ring and enable full functionality with other Valcom IP Endpoints.
- Use with Valcom multi-zone page units
- Use with Valcom talkback page units
- Background music mutes during page
- Customizable pre-page alert tone
- Music and tones volume controls
- Feedback elimination
- Multiple disconnect options
- Security code option
- SIP compatible, TLS/SRTP supported for SIP
- Web interface
- Requires a power supply; VP-624D
not included, but recommended
Expand V-ACS25 to 48 Zones, V-ACS-X48/25
ACS by Valcom, is a compact, yet powerful communications and emergency notification system. Designed for small to mid-size facilities, ACS works with most existing infrastructure and offers an expansive feature set usually found in more costly systems.
- Compact wall mount design
- Expand V-ACS25 to 48 Zones
Expand V-ACS45 to 48 Zones, V-ACS-X48/45
ACS by Valcom, is a compact, yet powerful communications and emergency notification system. Designed for small to mid-size facilities, ACS works with most existing infrastructure and offers an expansive feature set usually found in more costly systems.
- Compact wall mount design
- Expand V-ACS45 to 48 zones
Expand V-ACS25 to 72 Zones, V-ACS-X72/25
ACS by Valcom, is a compact, yet powerful communications and emergency notification system. Designed for small to mid-size facilities, ACS works with most existing infrastructure and offers an expansive feature set usually found in more costly systems.
- Compact wall mount design
- Expand V-ACS25 to 72 zones
Expands V-ACS45 to 72-Zones, V-ACS-X72/45
ACS by Valcom, is a compact, yet powerful communications and emergency notification system. Designed for small to mid-size facilities, ACS works with most existing infrastructure and offers an expansive feature set usually found in more costly systems.
- Compact wall mount design
- Expand V-ACS45 to 72 zones
Advanced Communication System, V-ACS25
Advanced Communication System 24 Zones (25 Volt)
The V-ACS25 Advanced Communication System is the perfect choice for retrofitting older paging systems, use existing speakers or add new speakers. Available in 24, 48 and 72 zone configurations.
- Compact wall mount
- 24 to 72 talkback stations
- Dual phone ports
- Up to 1 hour of custom WAV file storage
- 24 flexible audio groups
- Programmable switch and relays
- Eight bell schedules
- Clock synchronization
- Quick and easy installation
- Integrated clock correction
- SIP accessible (with additional equipment)
- Windows-based programming and administrative software
- Upgrade older 25V systems
Advanced Communication System 24 Zones (45 Ohm), V-ACS45
Advanced Communication System 24 Zones (45 Ohm)
The V-ACS45 Advanced Communication System is the perfect choice for small to medium paging systems, use existing speakers or add new speakers. Available in 24, 48 and 72 zone configurations.
- Compact wall mount
- 24 to 72 talkback stations
- Dual phone ports
- Up to 1 hour of custom WAV file storage
- 24 flexible audio groups
- Programable switch and relays
- Quick and easy installation
- Integrated clock correction
- SIP accessible (with additional equipment)
- Windows based programming and administrative software
- 8 bell schedules
- Clock synchronization
24-Station Cable Adapter, V-CA2924
The V-CA2924 is an adapter engineered to make the cabling transition from an existing Valcom V-2924A to a V-ACS45 quick and easy.
- Two 12-zone V-ACS45 input connections for 24 total zones
- One 24-zone V-2924A speaker output connection
- One 24-zone V-2924A call switch output connection
- Four level volume control for each zone
12 Port 25 Volt/45ohm Talkback Gateway, VE1225S
The VE1225S 12 Port Talkback Gateway allows for the ultimate modernization of old-fashioned analog intercom systems. Each VE1225S provides 12 two-way intercom channels each supporting either 2 x 45 Ohm speakers or a 15-Watt load of 25 V speakers. The unit conveniently features 12 call button inputs as well as dual line level outputs. These line level outputs may be connected to amplifiers or self-amplified speakers in order to provide one-way audio to common areas. AC power makes installation as easy as plugging in a common AC receptacle. System relays may be utilized for visual signaling during announcements or for door unlock functionality. 12 port retrofit gateway channels may be directly accessed via Session Initiation Protocol (SIP).
- Replaces most analog school intercoms
- 12 port 25 V- or 45-Ohm speaker connection
- 12 inputs for call switches
- 2-line level outputs for direct connection to one-way audio systems
- 2 Form A relay contacts
- 120 – 240 V 50/60 Hz AC powered
- Easy Windows based setup
- No server required
- 1-to-11-digit dial plans
- Front panel status led
- Compatible with most existing speaker cable
- Scalable to thousands of intercom stations/zones
- 19-inch rack mount design (1 unit)
- Convenient screw terminal and amphenol connectors
- Software volume control per zone
- SIP compatible
Network Page Zone Extender, Single Audio Port, VE8001A-V4
The VE8001A-V4 Network Page Zone Extender enables voice access to two zones of one-way paging over an IP based LAN/WAN. This allows page zone extension anywhere on the network. Multiple VE8001A-V4 Network Page Zone Extenders can be used on the same network to create very large and distributed public address systems. Example applications include multiple floors in a single building, multiple buildings in a campus environment, city wide paging of all fire and rescue buildings, interstate paging between bank branches.
- Audio Input
- 2 Audio Outputs
- 2 Form C Relays
- 1 Contact Closure Input
- RJ-45 jack for network connection
- Front panel activity LED
- Provides audio for up to 40 Valcom one-way amplified speaker assemblies
- AUX audio input via RCA jack
- Contact closure or VOX operation of audio input
- Removable screw terminal connectors provided for audio and relay interface
- AUX input music mutes during page
- Output control contact closure provided during paging output
- Compatible with 25- or 70-Volt amplifiers
- Barrel jack for optional DC power
- Power over Ethernet 802.3af Compatible
Network Page Zone Extender, Single Audio Port, VE8001AR-V4
The VE8001AR-V4 Network Page Zone Extender enables voice access to two zones of oneway paging over an IP based LAN/WAN. This allows page zone extension anywhere on the network. Multiple VE8001AR-V4 Network Page Zone Extenders can be used on the same network to create very large and distributed public address systems. Example applications include: multiple floors in a single building, multiple buildings in a campus environment, city wide paging of all fire and rescue buildings, interstate paging between bank branches.
- Audio Input
- 2 Audio Outputs
- 2 Form C Relays
- 1 Contact Closure Input
- RJ-45 jack for network connection
- Front panel activity LED
- Provides audio for up to 40 Valcom one-way amplified speaker assemblies
- AUX audio input via RCA jack
- Contact closure or VOX operation of audio input
- Removable screw terminal connectors provided for audio and relay interface
- AUX input music mutes during page
- Output control contact closure provided during paging output
- Compatible with 25- or 70-Volt amplifiers
- Barrel jack for optional DC power
- Power over Ethernet 802.3af Compatible
Dual Enhanced Network Station, Dual FXS Port, Rack Mount, VE8012BR
The VE8012BR Dual Enhanced Network Station Port allows most loop start terminal devices to be connected to a managed IP-based LAN/WAN.
Learn More
• RJ-45 for network connection
• 2 RJ-11 telephone connections
• 4 relays with Form C contacts
• Front panel activity LED
• Network activity LEDs
• 2 REN
• 2.5mm jack for DC
• Power over Ethernet (PoE) 802.3af compliant
• Provides caller ID information
• No server required
• 1-To-11-digit dial plans
• Easy windows-based setup
• Contact closures available for:
-audio indication
-ringing indication
-door unlocking
Quad Enhanced Network Station, Quad FXS Port, VE8014B
The VE8014B Quad Enhanced Network Station Port allows most loop start terminal devices to be connected to a managed IP-based LAN/WAN.
• RJ-45 for network connection
Learn More
• 4 RJ-11 telephone connections
• 4 relays with Form C contacts
• Generates caller ID signals
• Front panel activity LED
• Network activity LEDs
• 4 REN
• 2.5mm jack for DC
• Power over Ethernet (PoE) 802.3af compliant
• Provides caller ID information
• No server required
• 1-to-11-digit dial plans
• Easy windows-based setup
PagePro IP, SIP-Based Paging Server — 4 Zones, One-Way Analog Paging, plus 8 Zones IP Paging, VIP-204B
The VIP-204B is a PagePro IP, SIP-Based Paging Server that works with virtually all SIP based telephone systems and provides 4 zones of one-way analog paging. Designed for quick and easy installation.
- SIP compatible
- PoE (IEEE 802.3af)
- 4 analog page outputs
- 8 zones of IP paging
- Quick and easy installation
- Background music
- Feedback elimination
- Night ring tone
IP Gateway Audio Port, Network — Single Port, InformaCast®, VIP-801A-IC-V4
The VIP-801A-IC-V4 is one of Valcom's Audio Port Gateways that enables voice access to a single zone of one-way paging over an IP-based network. This allows page zone extension anywhere on the network allowing the page zone to be extended anywhere network connectivity is available. It can also be programmed as a SIP device for connectivity to virtually any VoIP telephone system.
- InformaCast® compliant
- Audio outputs
- Programmable Form A or C Relay Closures
- Programmable contact closure inputs
- RJ-45 jack for network connection
- Front panel activity LED
- Provides audio for up to 40 Valcom one-way self-amplified speaker assemblies
- Output control contact closure provided during paging output
- Compatible with 25 or 70 Volt amplifiers
- Barrel jack for optional DC power
IP Gateway Audio Port, Network — Single Port, Intrado Revolution®, VIP-801A-SA-V4
The VIP-801A-SA-V4 is one of Valcom's Audio Port Gateways that enables voice access to a single zone of one-way paging over an IP-based network. This allows page zone extension anywhere on the network allowing the page zone to be extended anywhere network connectivity is available. It can also be programmed as a SIP device for connectivity to virtually any VoIP telephone system.
- Audio outputs
- Programmable Form A or C Relay Closures
- Programmable contact closure inputs
- RJ-45 jack for network connection
- Front panel activity LED
- Barrel jack for optional DC power
- Provides audio for up to 40 Valcom one-way self-amplified speaker assemblies
- Output control contact closure provided during paging output
- Compatible with 25 or 70 Volt amplifiers
IP Gateway Audio Port, Network — Single Port, VIP-801A-V4
The VIP-801A-V4 is one of Valcom's Audio Port Gateways that enables voice access to a single zone of one-way paging over an IP-based network. This allows page zone extension anywhere on the network allowing the page zone to be extended anywhere network connectivity is available. It can also be programmed as a SIP device for connectivity to virtually any VoIP telephone system.
- Audio outputs
- Programmable Form A or C Relay Closures
- Programmable contact closure inputs
- RJ-45 jack for network connection
- Front panel activity LED
- Compatible with 25 or 70 Volt amplifiers
- Provides audio for up to 40 Valcom one-way self-amplified speaker assemblies
- Output control contact closure provided during paging output
- Barrel jack for optional DC power
IP Gateway Audio Port, Network — Dual Port, VIP-802B
Valcom's VIP-802B IP Gateway Audio Port, Network — Dual Port enables voice access to two zones of one-way paging over an IP-based network. This allows page zone extension anywhere on the network allowing the page zone to be extended anywhere network connectivity is available. It can also be programmed as a SIP device with two identities (one per audio channel) for connectivity to virtually any VoIP telephone system.
- Audio outputs
- Programmable Form A or C relay closures
- Programmable contact closure Inputs
- RJ-45 jack for network connection
- Front panel activity LED
- Barrel jack for optional DC power
- Provides audio for up to 40 Valcom one-way self-amplified speaker assemblies
- Output control contact closure provided during paging output
- UL and cUL listed
- Compatible with 25 or 70 Volt amplifiers
IP Gateway Audio Port, Network — Quad Port, VIP-804B
VIP-804B IP Paging Gateway
The VIP-804B is one of Valcom's IP Gateway Audio Port, Network — Quad Port enables voice access to four zones of one-way paging over an IP-based network. This allows page zone extension anywhere on the network allowing the page zone to be extended anywhere network connectivity is available. It can also be programmed as a SIP device with four identities (one per audio channel) for connectivity to virtually any VoIP telephone system.
- Audio outputs
- Programmable Form A or C Relay closures
- Programmable contact closure Inputs
- RJ-45 jack for network connection
- Front panel activity LED
- Provides audio for up to 40 Valcom one-way self-amplified speaker assemblies
- Output control contact closure provided during paging output
- Compatible with 25 or 70 Volt amplifiers
- UL and cUL listed
- Barrel jack for optional DC power

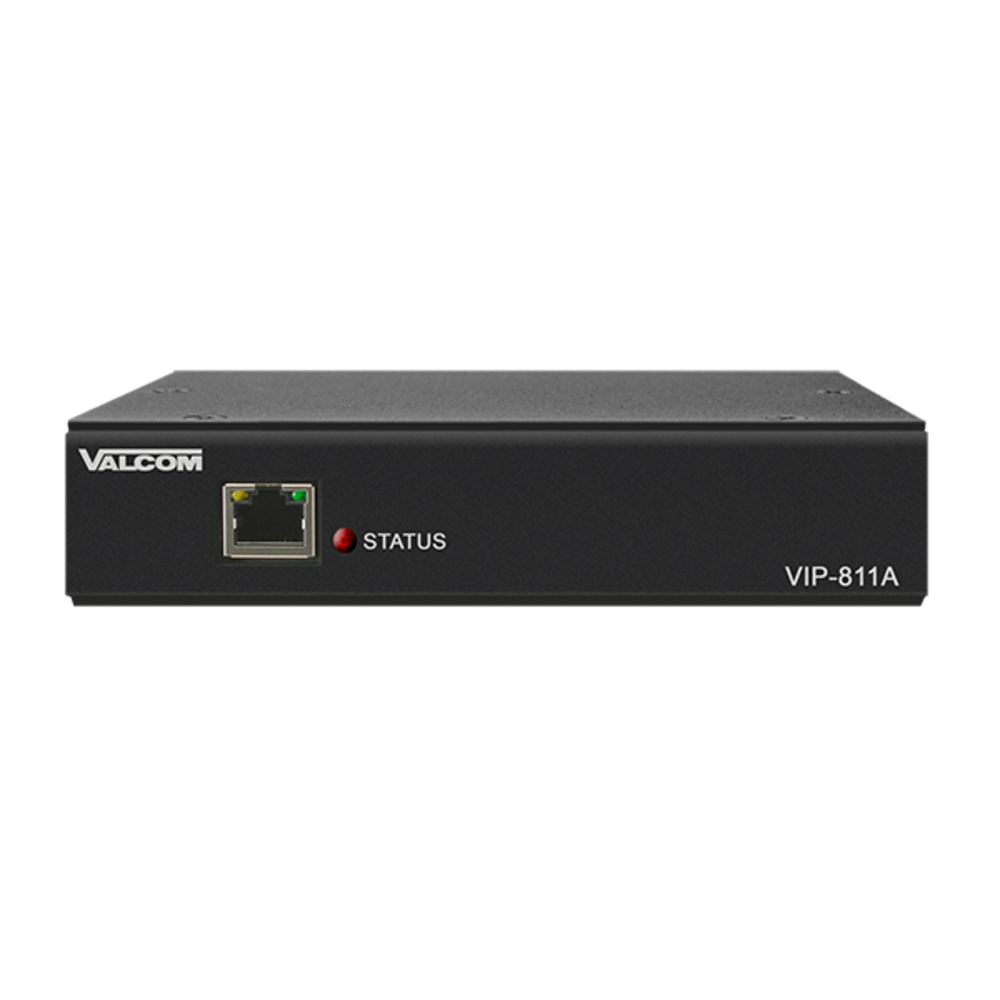

IP Gateway FXS Port, Network — Single Port, VIP-811A
Valcom's IP Gateway FXS Port, Network — Single Port enables telephones to engage in paging and phone-to-phone communications over an IP-based network.
- Concurrent SIP and Multicast
- PoE (IEEE 802.3 af)
- Windows based application for control and setup
- Ideal for remote areas where phones are required
- 1 RJ-11 telephone connections
- 2 Relays with Form C contacts
IP Gateway FXS Port, Network — Dual Port, VIP-812B
Valcom's VIP-812B IP Gateway FXS Port, Network — Dual Port enables telephones to engage in paging and phone-to-phone communications over an IP-based network.
- RJ-45 for network connection
- 2 RJ-11 telephone connections
- 4 Relays with Form C contacts
- Front panel activity LED
- Network activity LEDs
- Ringer equivalency (REN)=0.8A
- 2.5mm jack for external power (optional)
- UL and cUL listed
- Power over Ethernet (PoE) 802.3af compatible
IP Gateway FXS Port, Network — Quad Port, VIP-814B
Valcom's VIP-814B IP Gateway FXS Port, Network — Quad Port enables telephones to engage in paging and phone-to-phone communications over an IP-based network.
- RJ-45 for network connection
- 4 RJ-11 telephone connections
- 4 Relays with Form C contacts
- Front panel activity LED
- Network activity LED
- Ringer equivalency (REN)=0.8A
- 2.5mm jack for external power (optional)
- UL and cUL listed
- Power over Ethernet (PoE) 802.3af compatible
