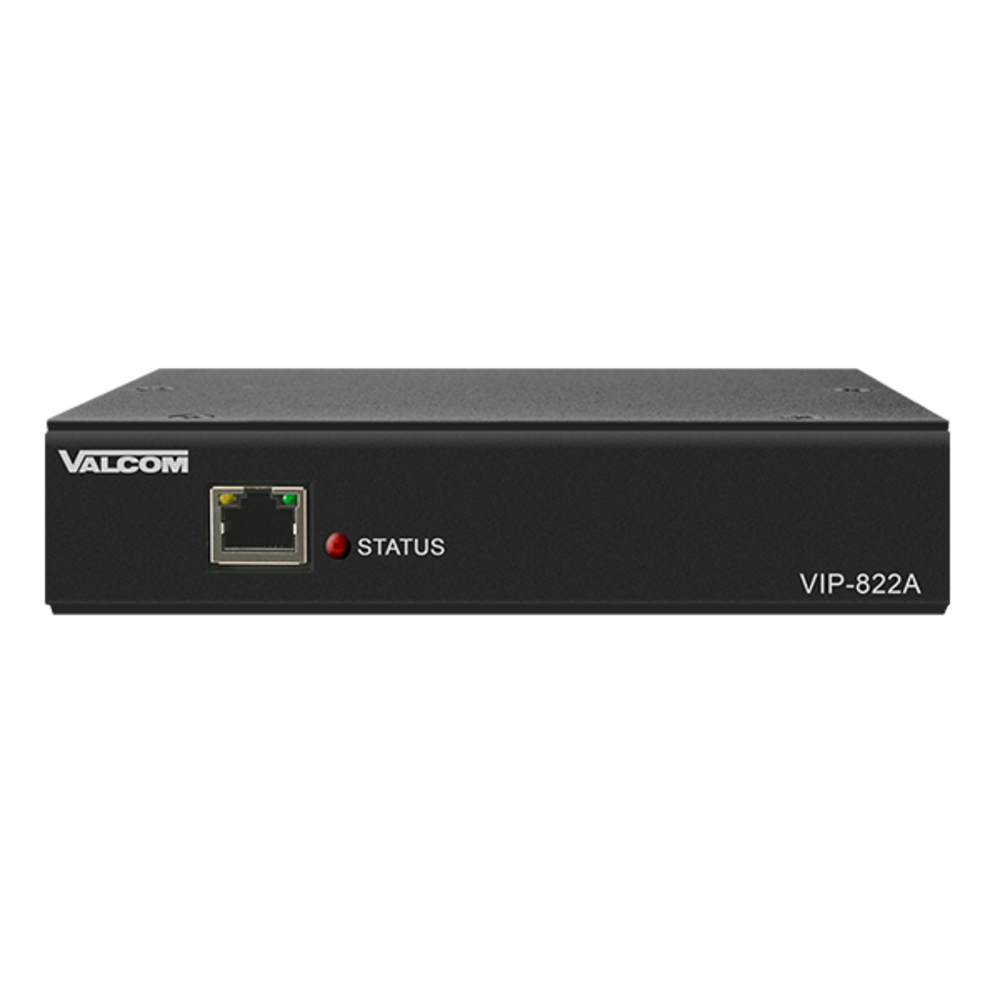

VIP-822A Paging Gateway
The VIP-822A IP Paging Gateway FXO Port, Network — Dual Port allows most loop start station ports to be connected to a managed IP-based LAN/WAN. SIP connectivity allows the VIP-822A to act as a gateway device between a SIP telephone system and other Valcom paging systems.
- RJ-45 for network connection
- 2 RJ-11 FXO connections
- 2 RJ-11 failover telephone connections
- Decode Caller ID signals
- Front panel activity LED
- Network activity LEDs
- 2.5mm jack for DC power
- Power over Ethernet (PoE) 802.3af compatible
Specifications
Dimensions & Weight
Dimensions:1.75in H x 6.75in W x 9.50in D
(4.45cm x 17.15cm x 24.13cm)
Weight:
1.75lbs (0.79kg)
Mounting
The VIP-822A is designed for wall or table mounting.Two VIP-822A units may be joined together and installed into a 1U rack slot.
