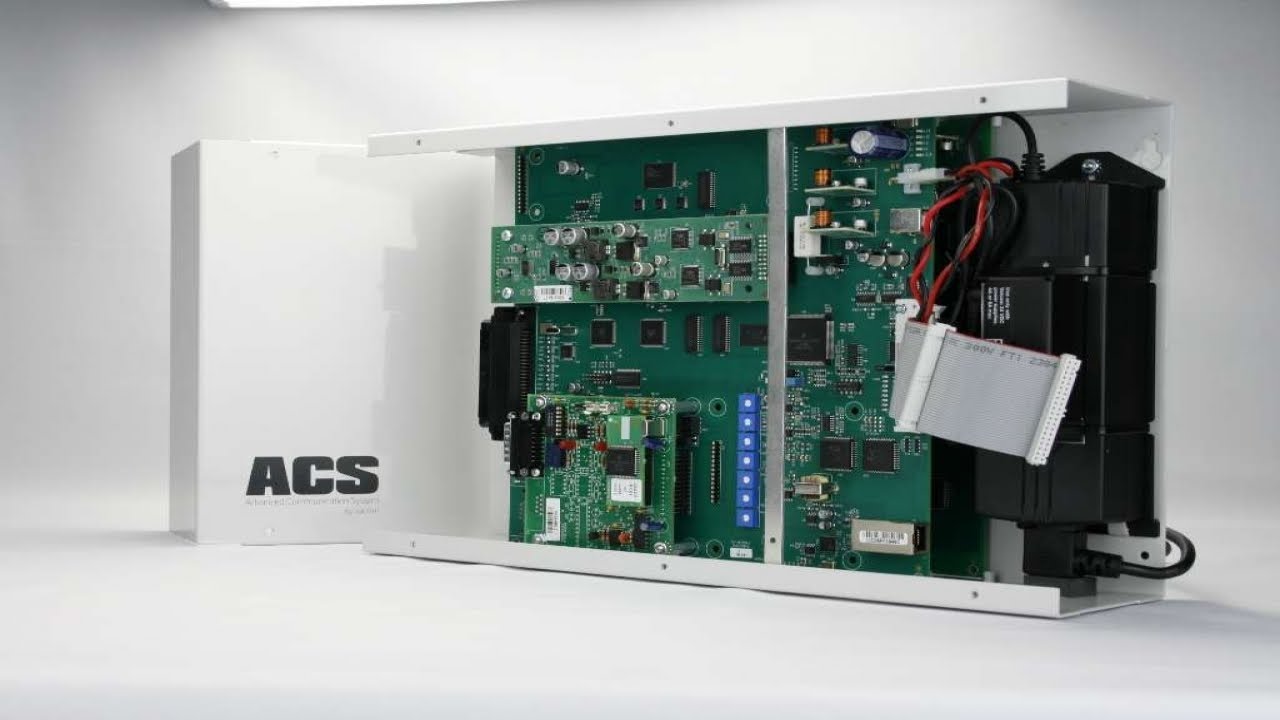

V-ACS45

Advanced Communication System 24 Zones (45 Ohm)

  • Compact wall mount
  • 24 to 72 talkback stations
  • Dual phone ports
  • Up to 1 hour of custom WAV file storage
  • 24 flexible audio groups
  • Programable switch and relays
  • Quick and easy installation
  • Integrated clock correction
  • SIP accessible (with additional equipment)
  • Windows based programming and administrative software
  • 8 bell schedules
  • Clock synchronization

Overview

 The V-ACS45 Advanced Communication System is the perfect choice for small to medium paging systems, use existing speakers or add new speakers. Available in 24, 48 and 72 zone configurations.

Specifications

AUDIO INPUT

Two auxiliary inputs:
Input impedance: 8 to 600 ohms
Input level: -10 dBm nominal

AUDIO OUTPUT

Output impedance: 45 ohms
Output level: 1-watt nominal

POWER REQUIREMENTS

4A @ 24 Vdc

ACCESS METHODS

Electronic key system line key access
PABX loop start trunk port access
Dedicated single line telephone(s)

ENVIRONMENT

Temperature: +32 to +104ºF (0 to +40ºC)
Humidity: 0-85% Non-condensing

HOUSING & FINISH

Gray painted aluminum alloy

DIMENSIONS & WEIGHT

Dimensions:
16.15in W x 10.38in H x 4.00in D
(41.30cm x 26.36cm x 10.16cm)
Weight: 12.22lbs (5.54kg)

ACCESSORIES

V-ACS-X48/45
expands the V-ACS45 system to 48 Zones 45 Ohm

V-ACS-X72/45
expands the V-ACS45 system to 72 Zones 45 Ohm

Options

  • V-CA2924 24 Zone Cable Adapter
  • V-LPT One-Way Paging Adapter
  • V-DCH 2-Wire Digital Clock Correction Head End
  • V-CIO  59th Minute Clock Correction Head End
  • VP-624D Power Supply, Digital, 600mA/24VDC
  • V-WMCRA Wireless Master Clock Repeater
  • V-DCPI Digital Clock Protocol Interface
